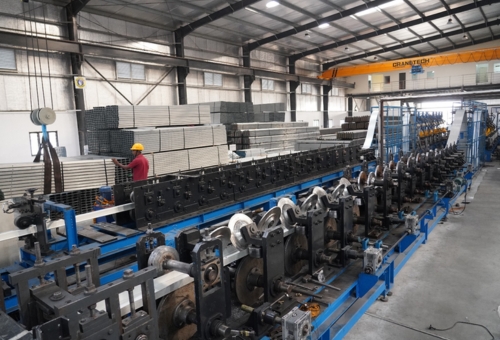

Roll forming machines are designed to make sheet metal into straight formed shapes. The roll forming process takes a continuous flat sheet of metal and power feeds it through a successive series of Hardened Steel Rollers, which station by station shape the metal into a finished shape as it passes through them.
Roll Forming Machines
Roll Forming Machines
Technical Specifications:
- Maximum sheet width that can be formed: 420 mm
- Maximum sheet thickness in BGL/GP/HR/POSMAC coils that can be formed: 3 mm
- Vertical distance between shafts: 100 mm
- Horizontal distance between shafts: 190 mm
- Number of forming stations: 18 no’s
- Total HP for Line: 80
- Speed of the machine: 4mt/minute
- Size of machine: 1600 x 800 x 11000 mm
